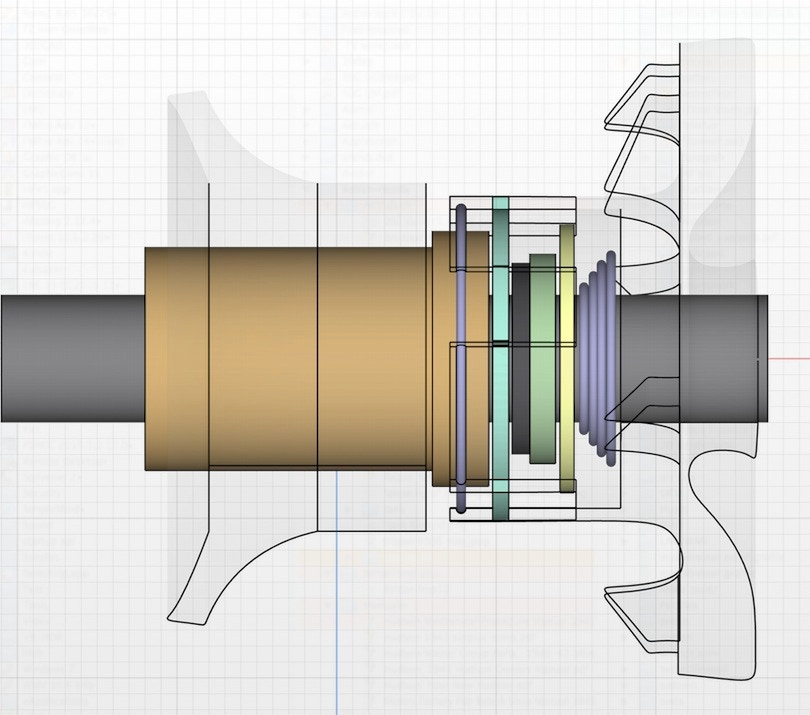

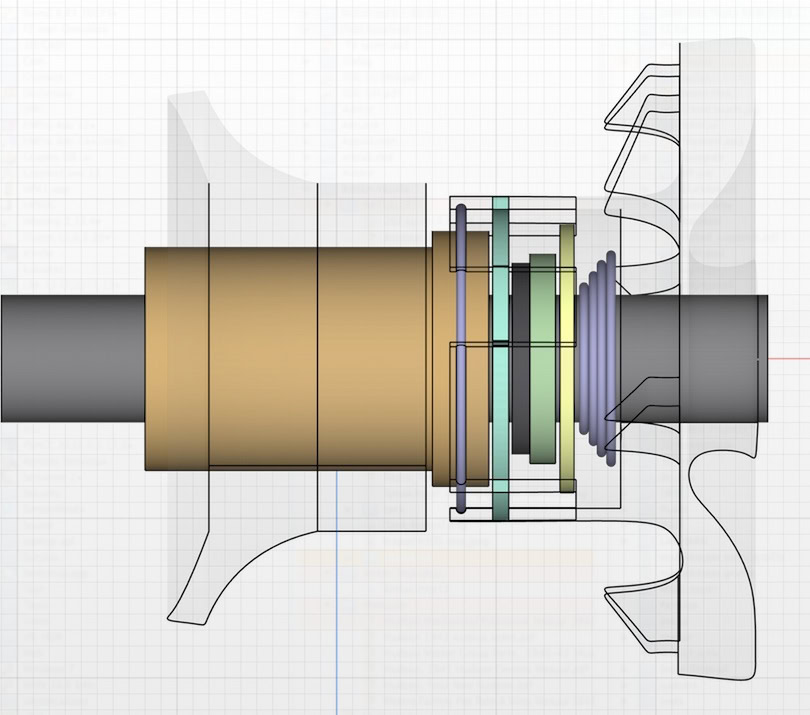

Figuring out weak spots.

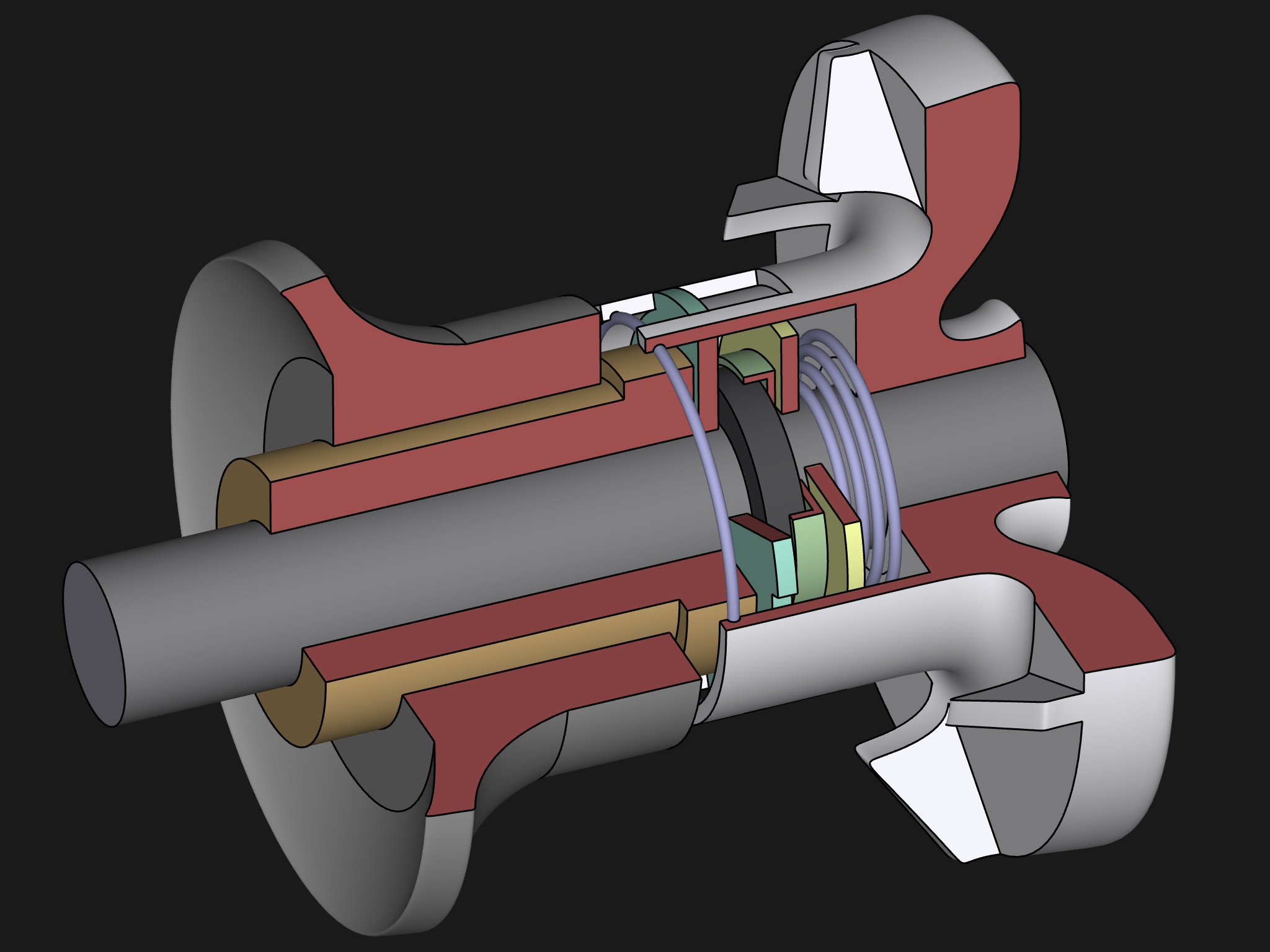

3D live render in usdz for iOS Safari or DuckDuck, click link and click Object

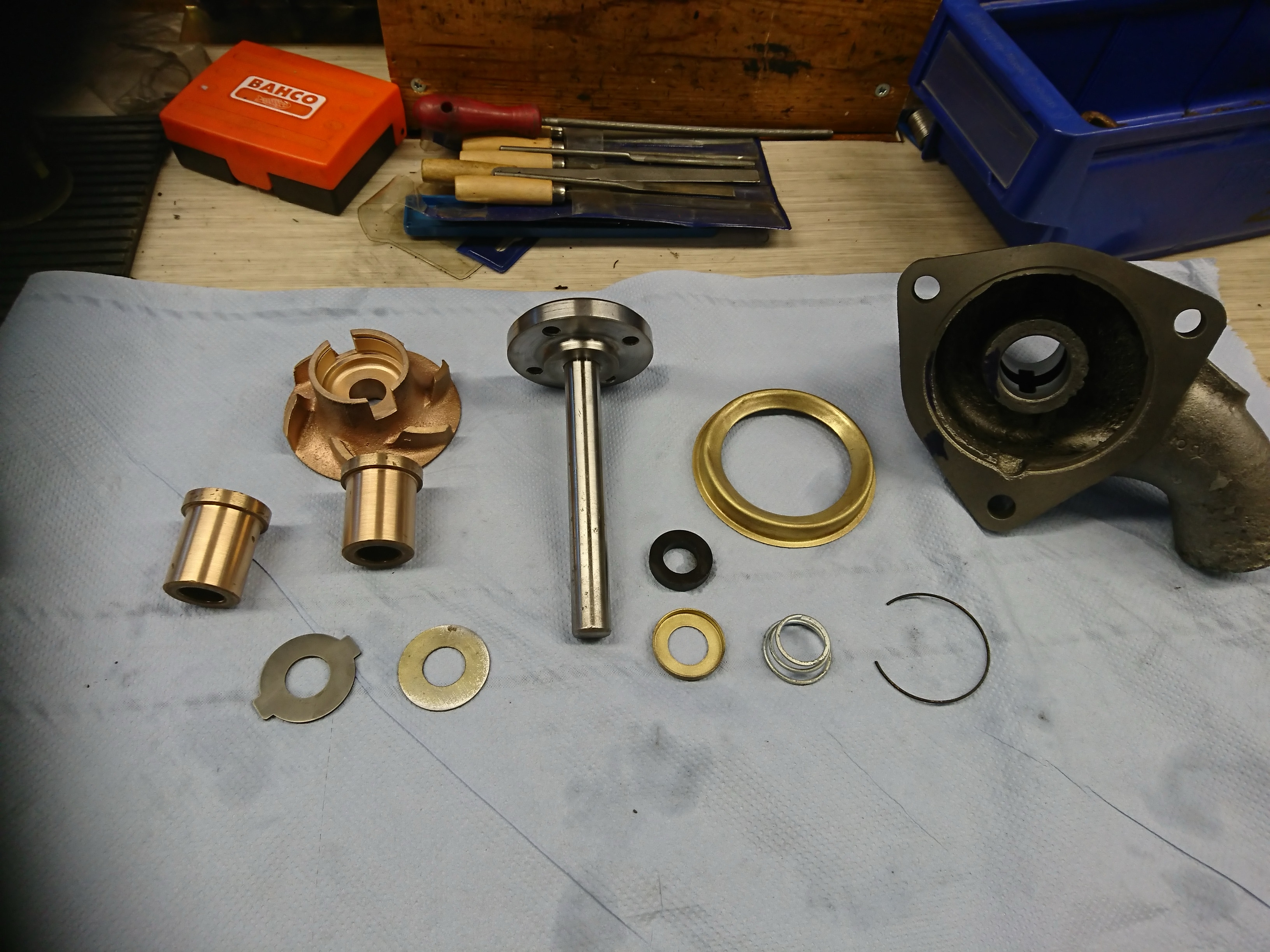

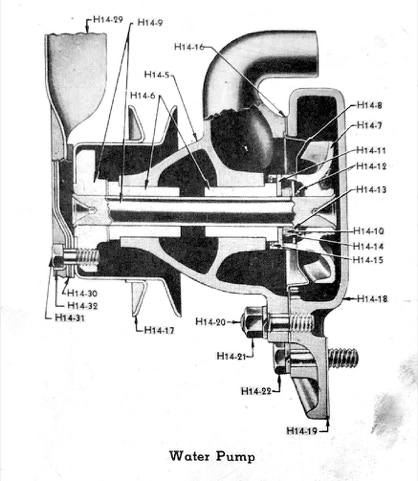

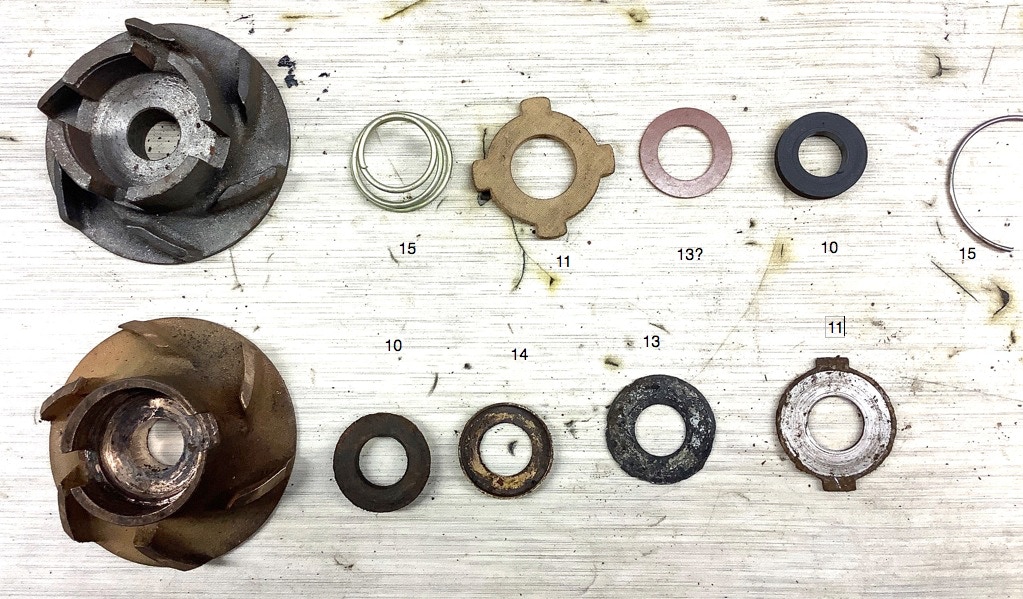

5. Body assembly
6. Body bushings

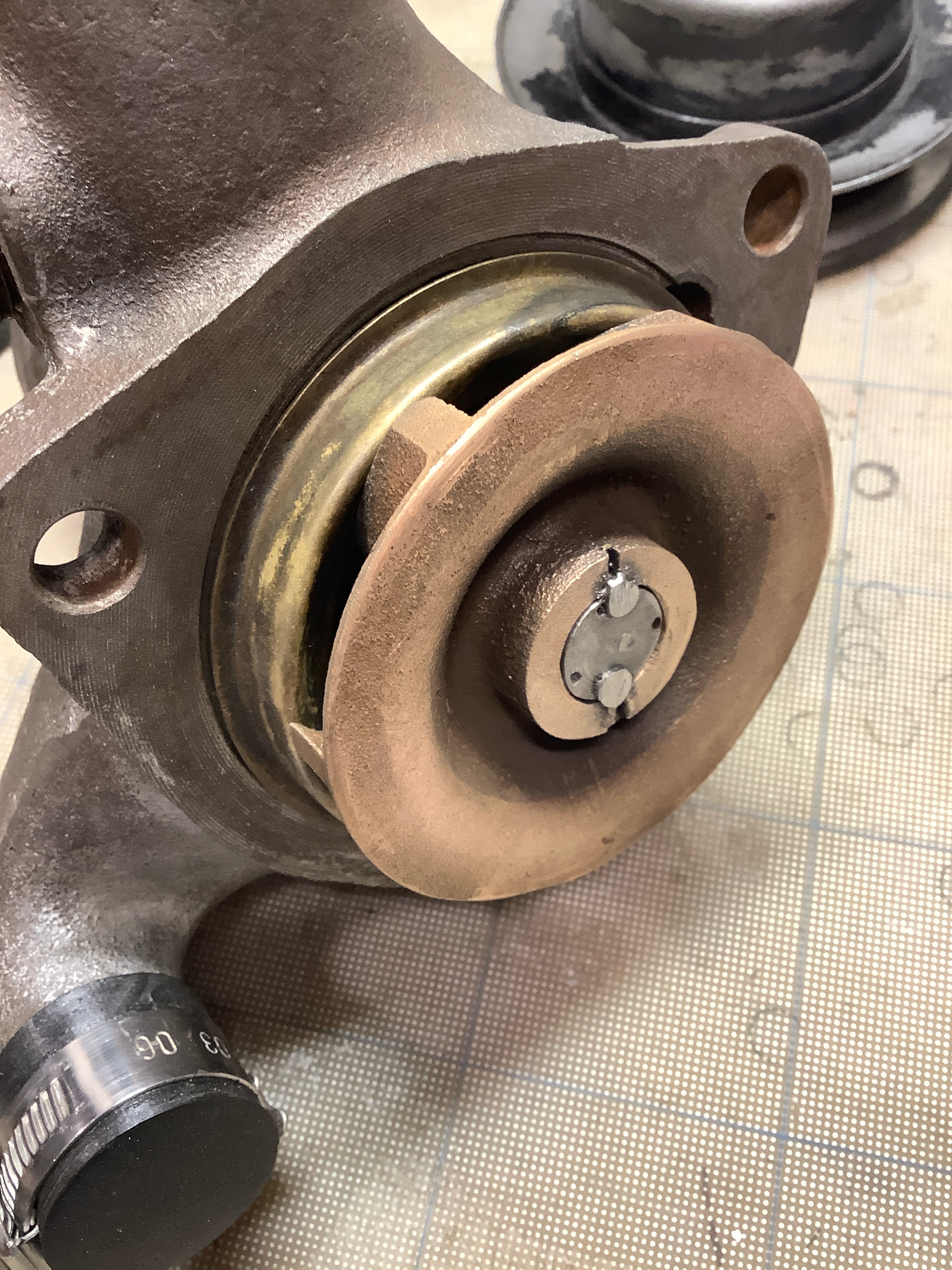

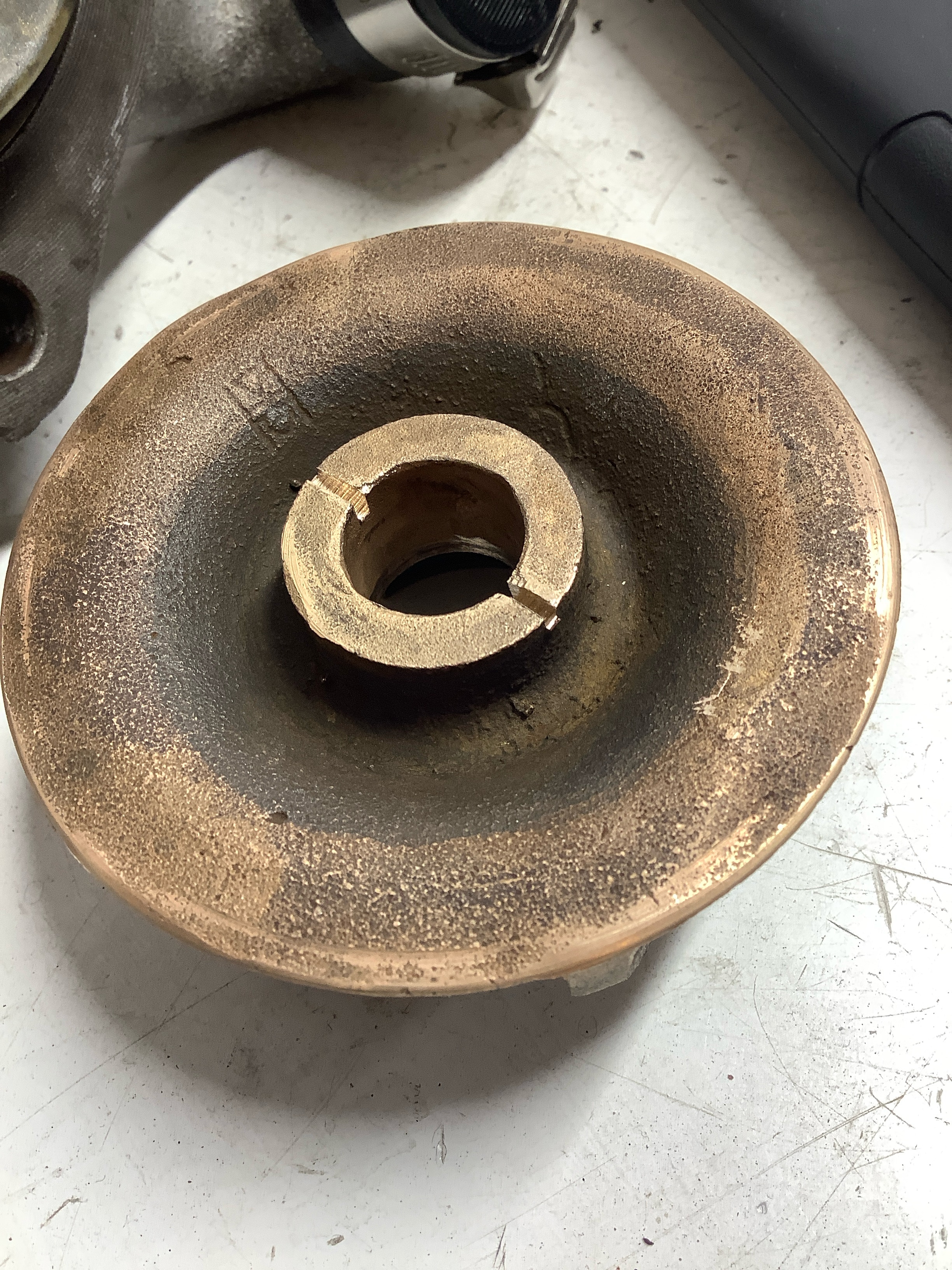

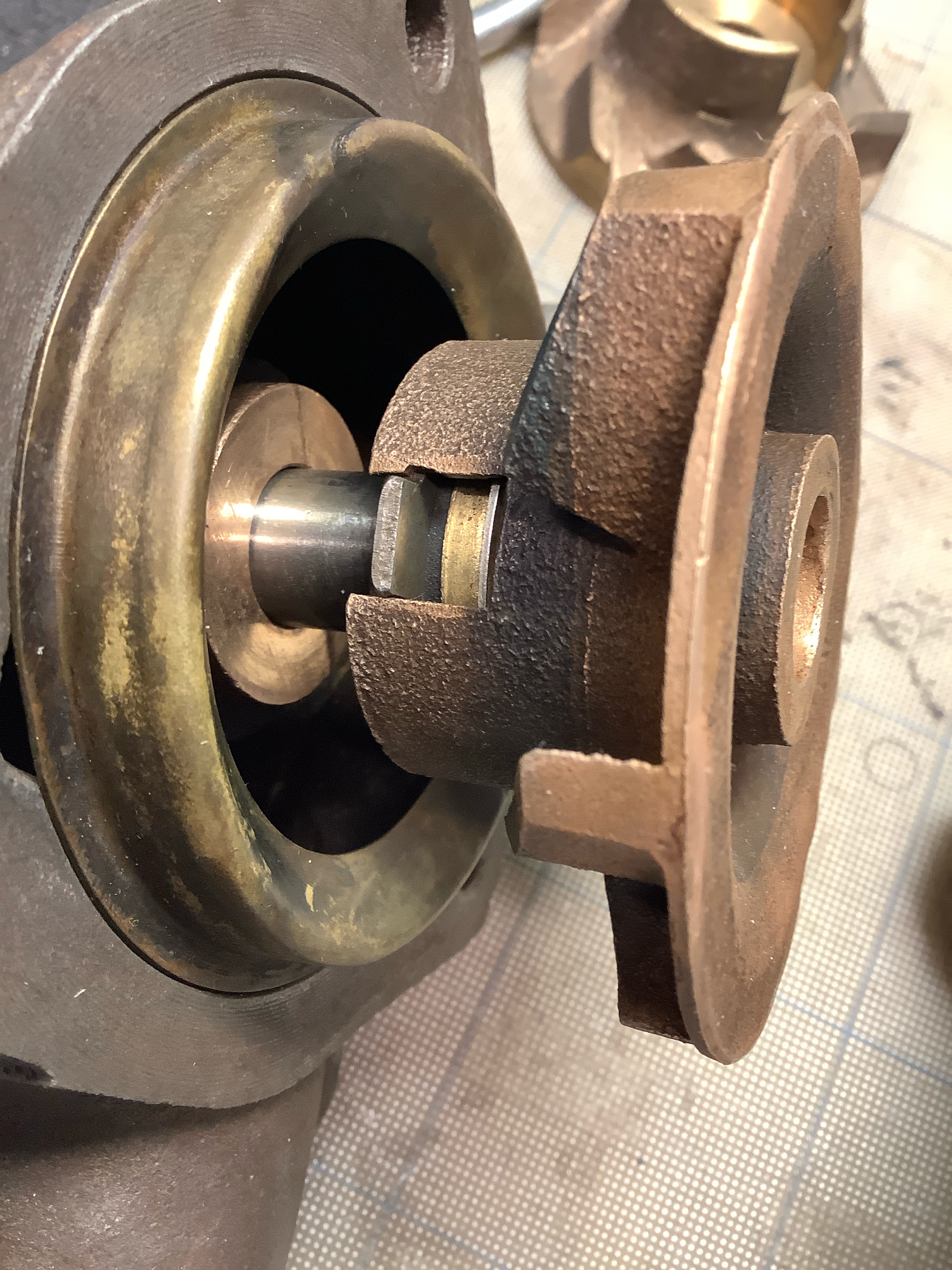

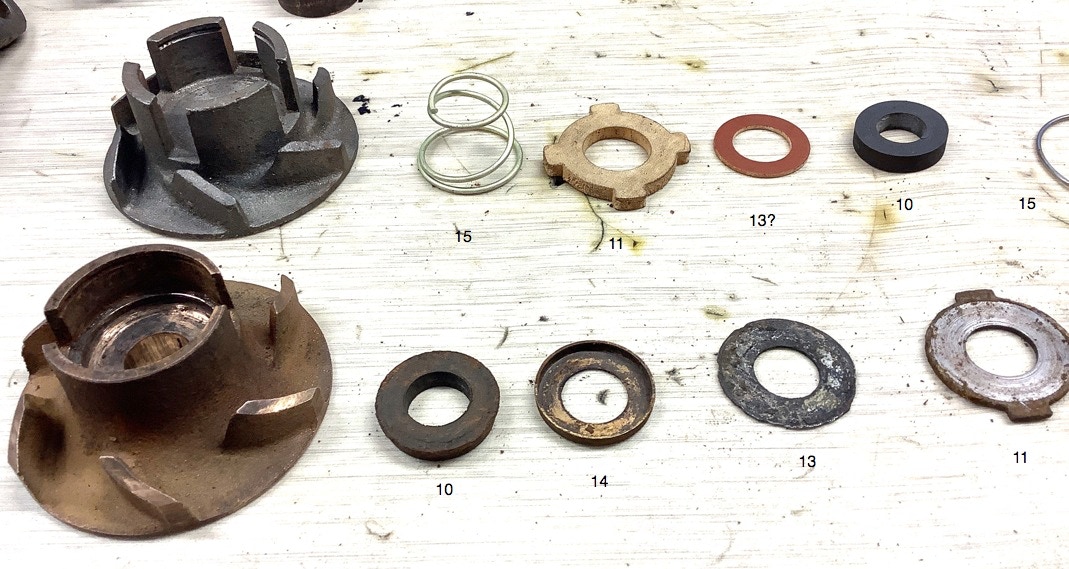

7. Impeller
8. Impeller cup

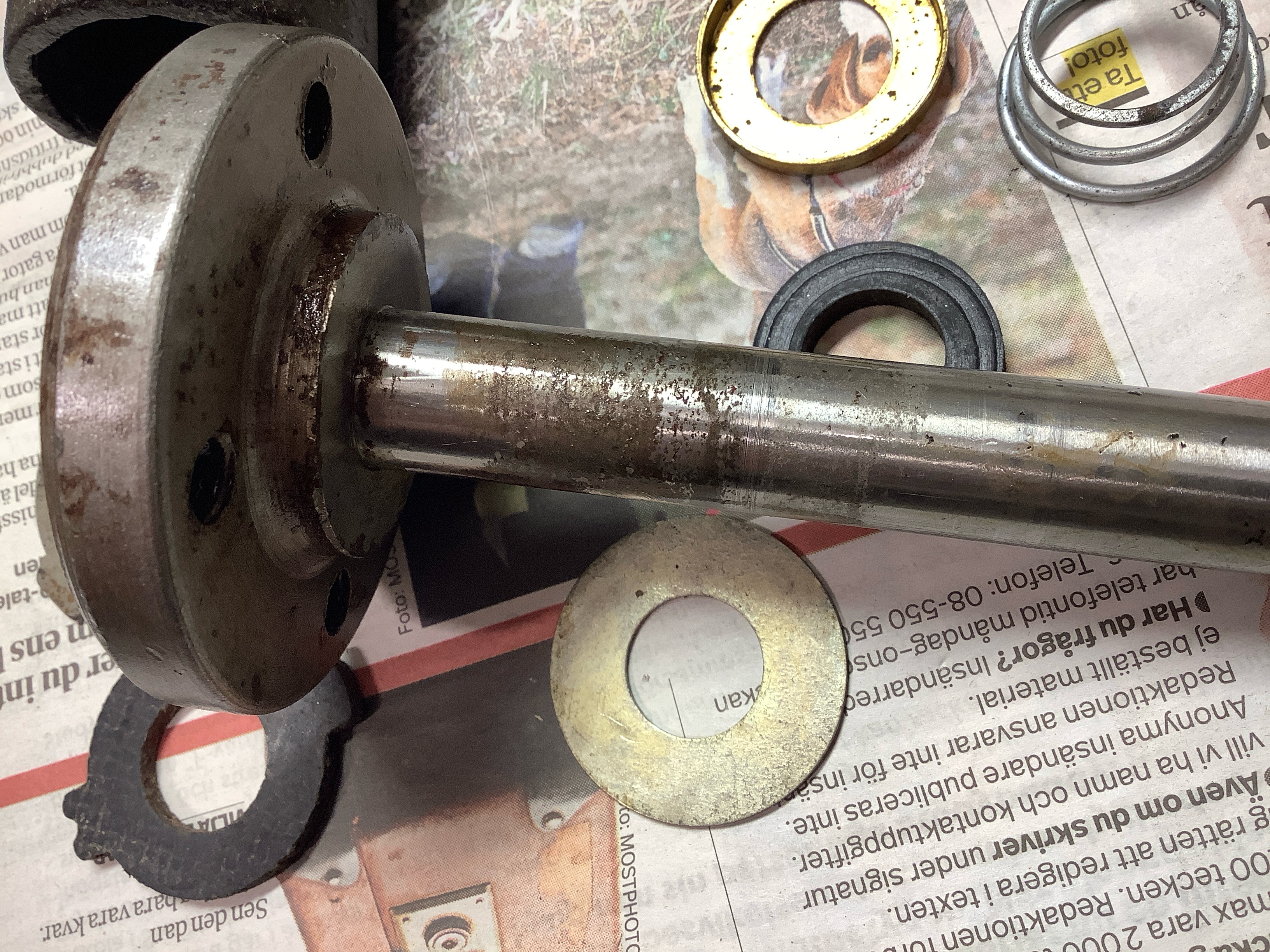

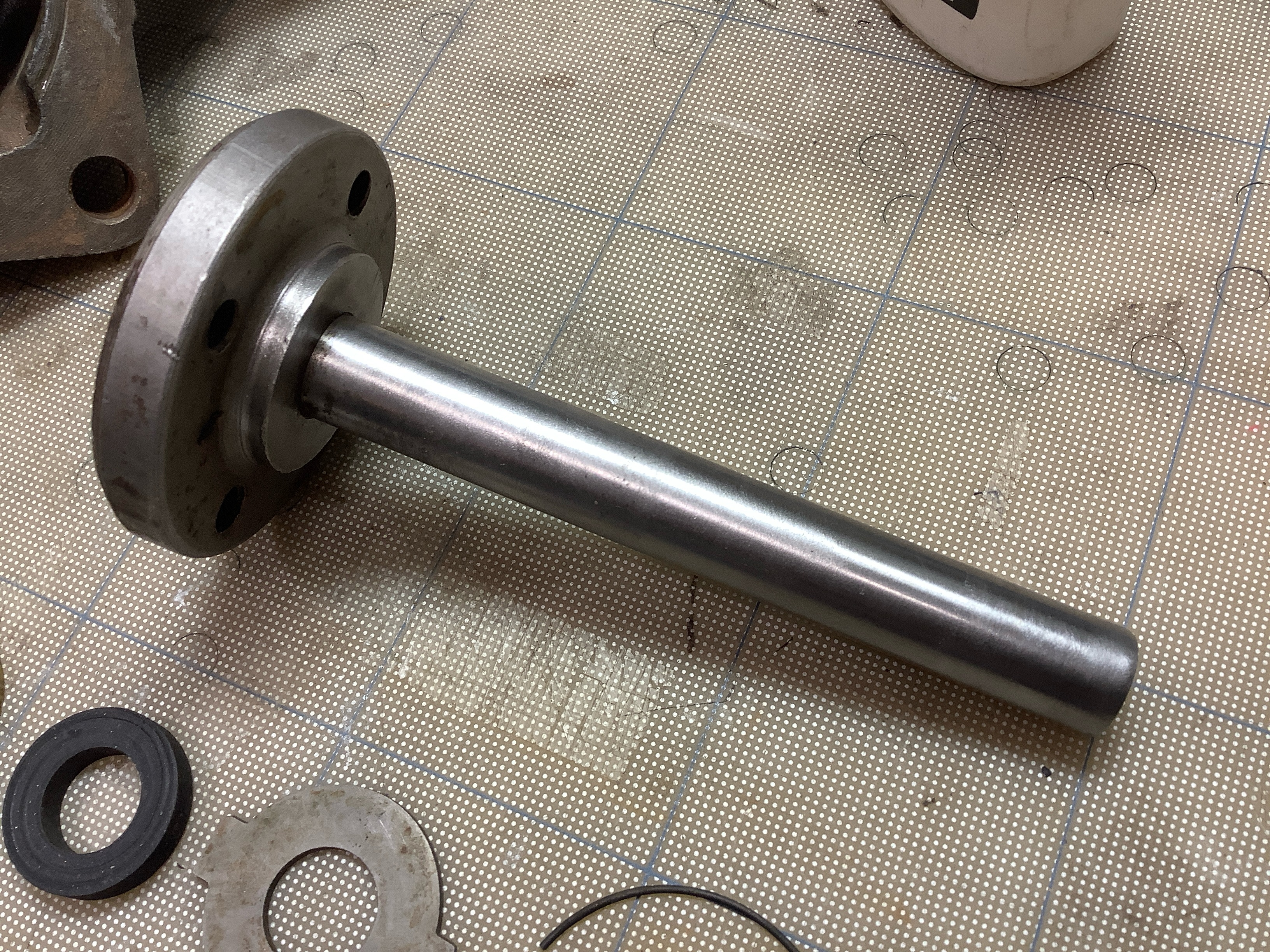

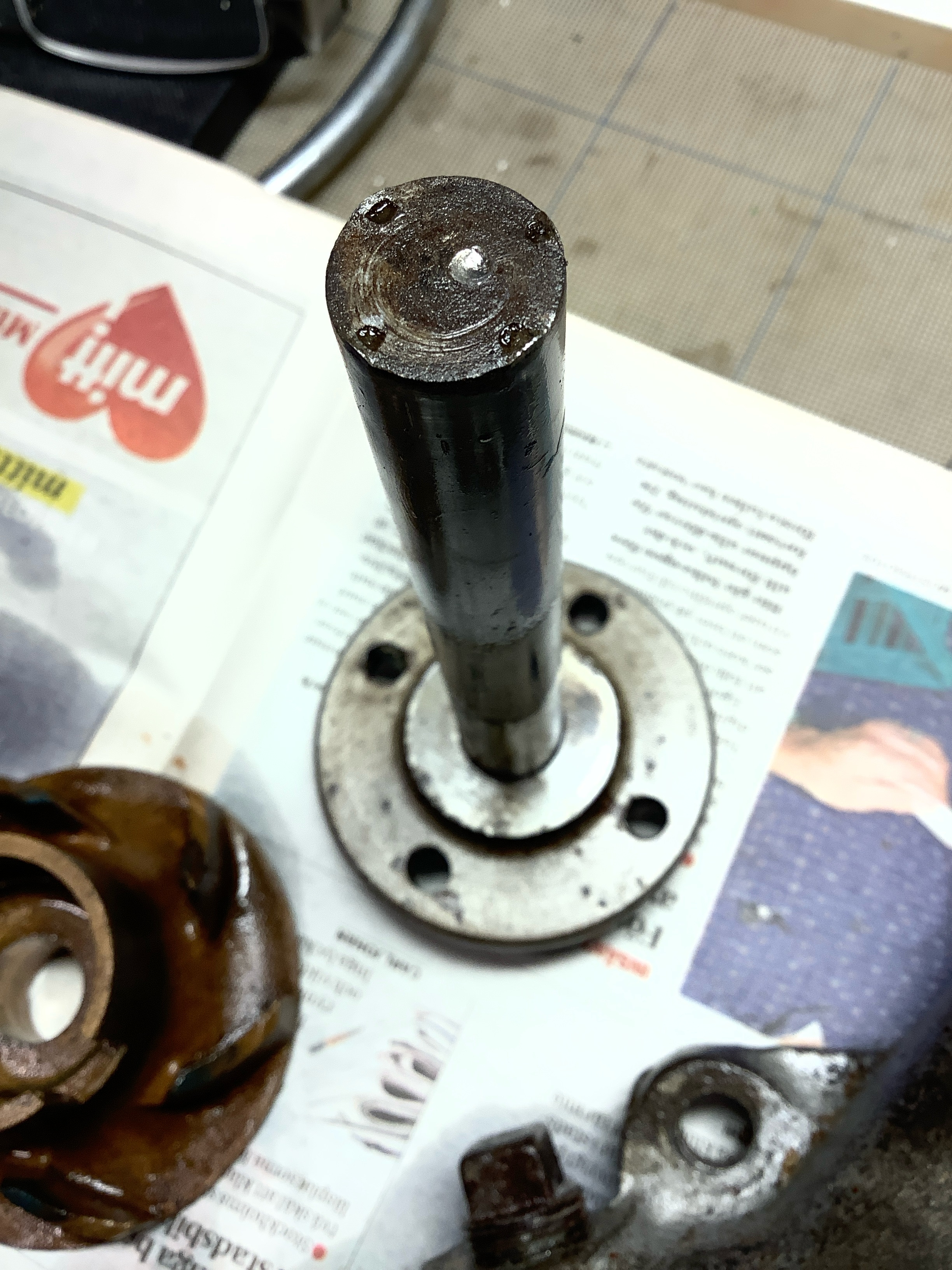

9. Shaft and pulley hub assembly

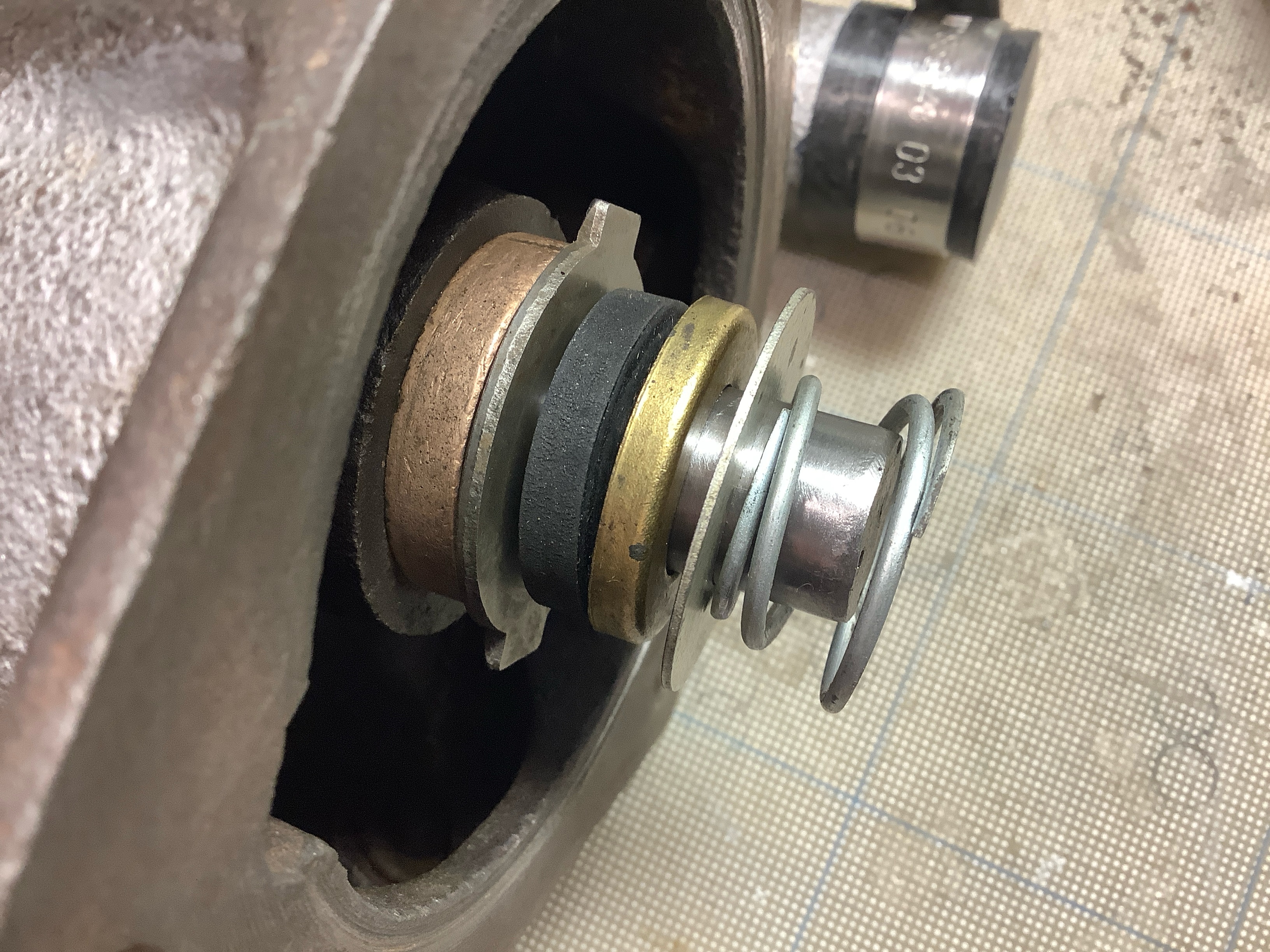

10. Seal for pump shaft
11. Trust washer - shaft seal

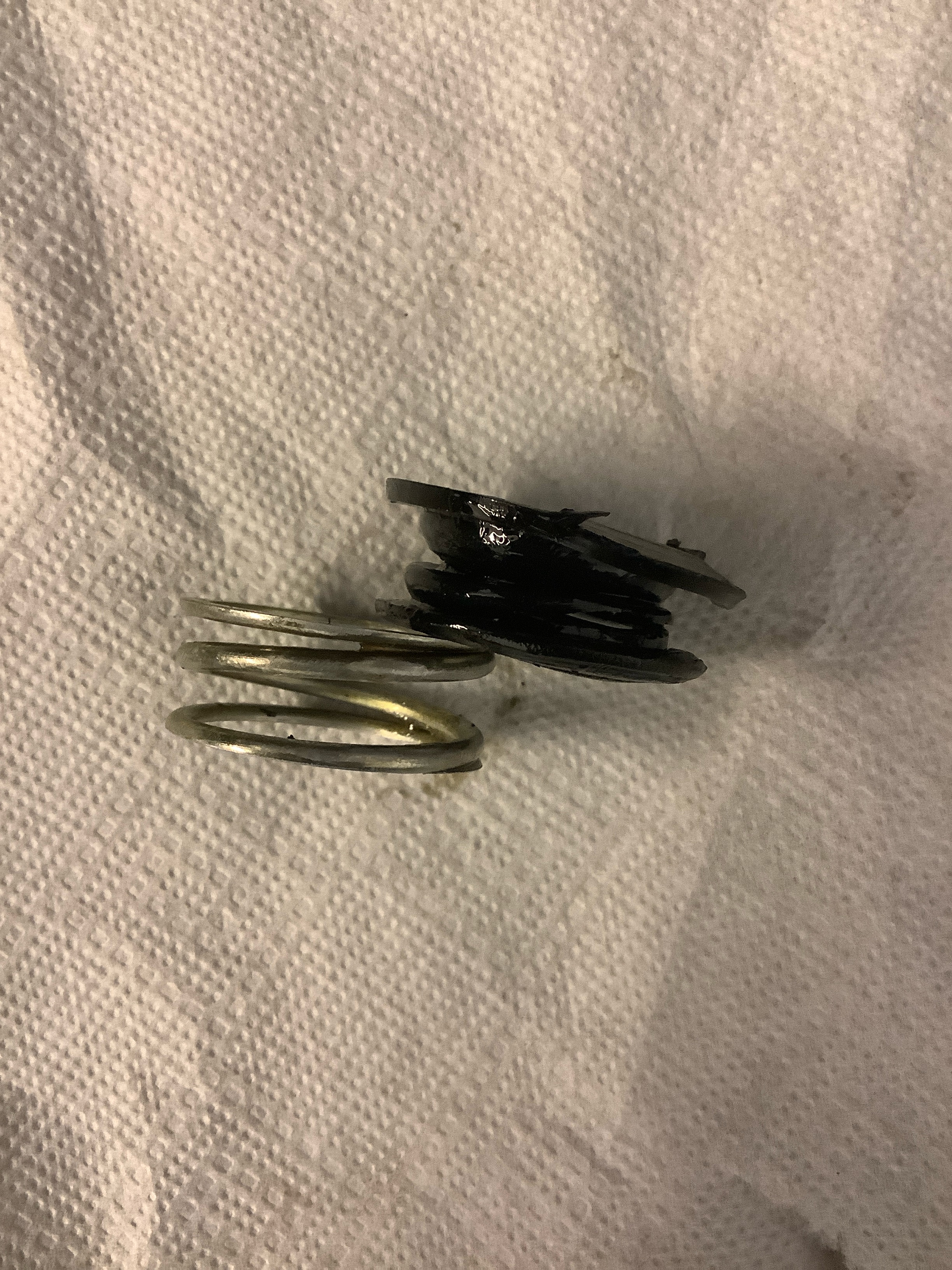

12. Compression spring - shaft seal
13. Washer - shaft seal compression spring
14. Retainer - shaft seal
15. Spring - shaft seal retainer

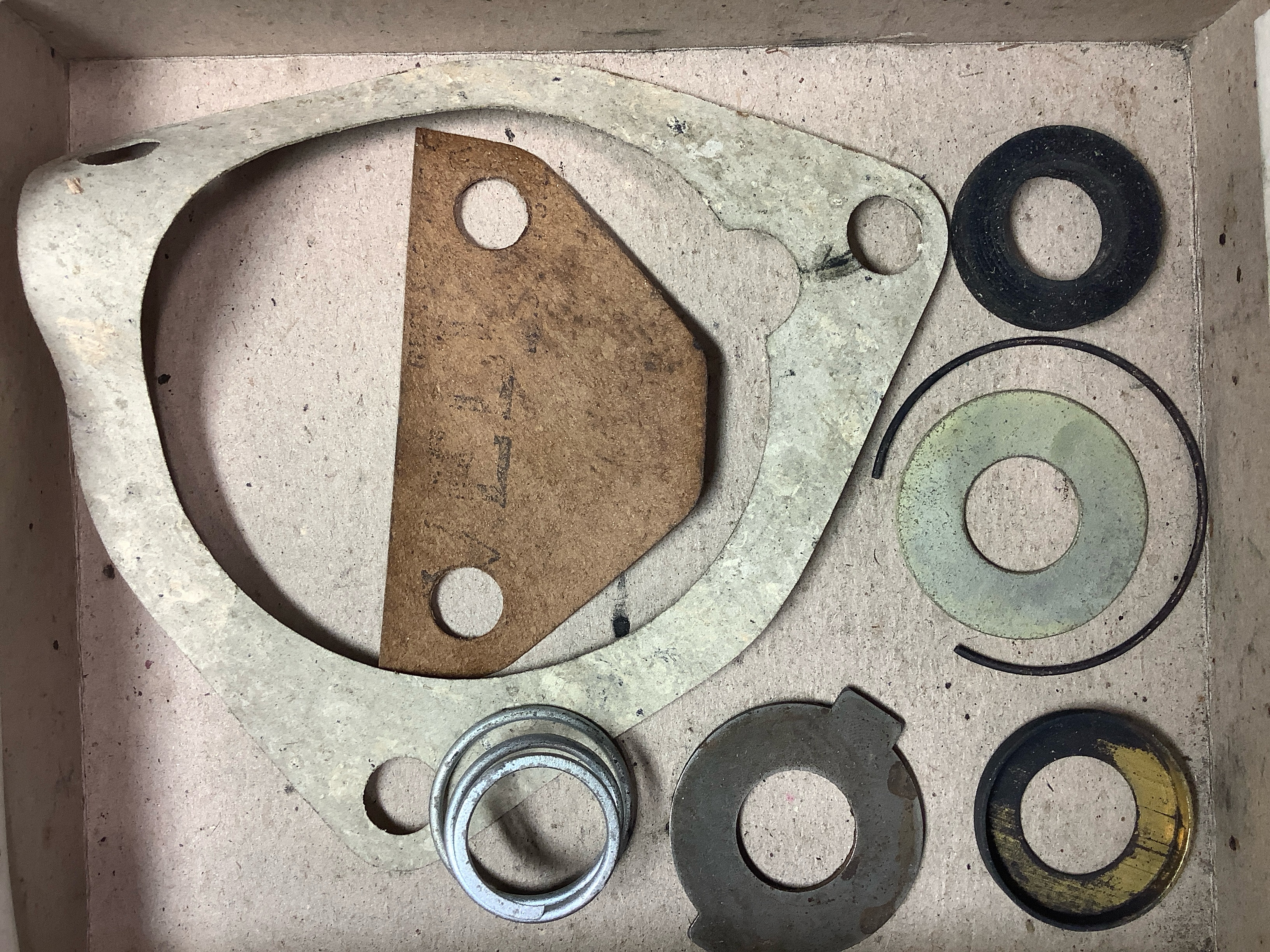

16. Gasket - body

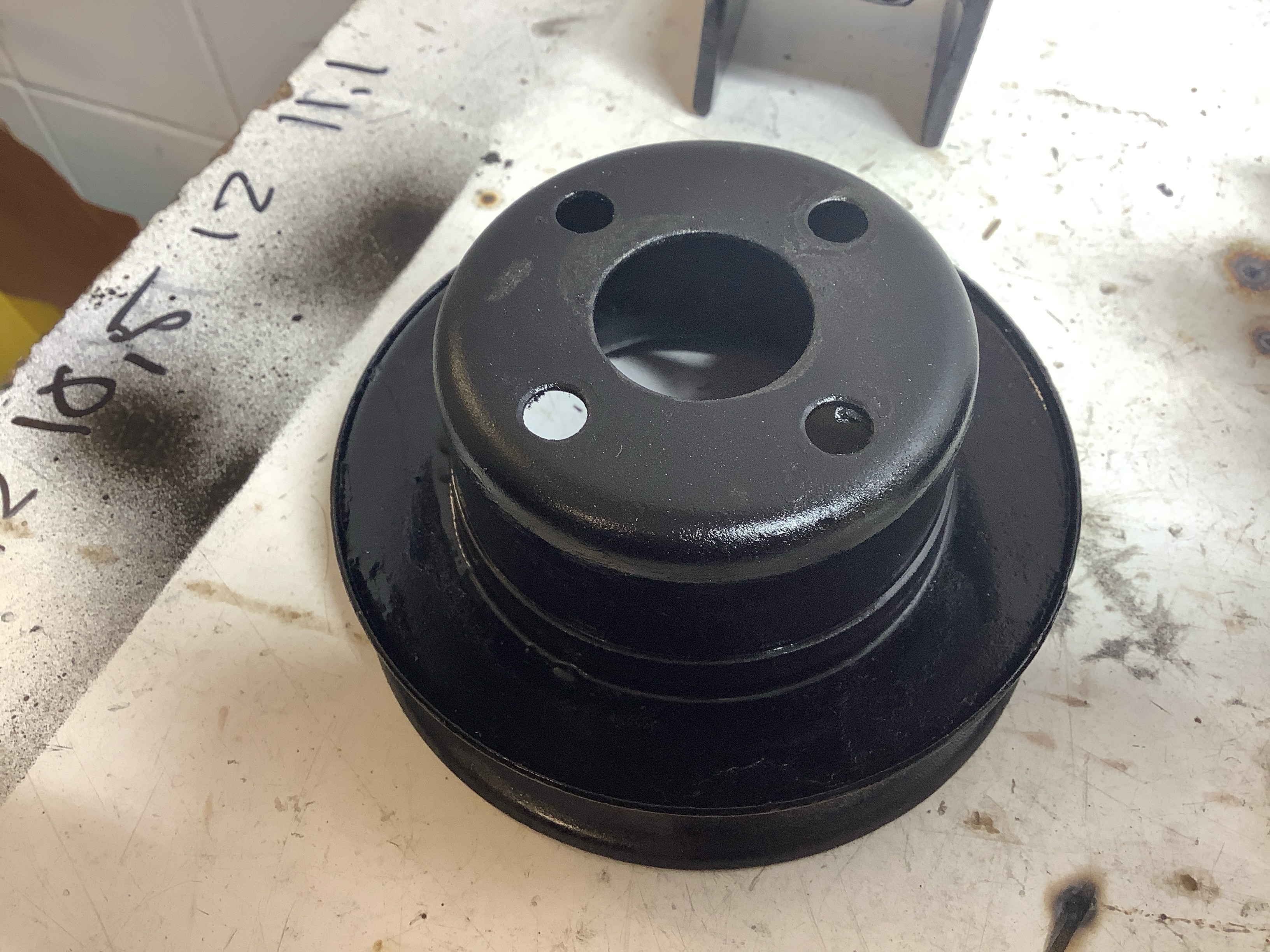

17. Pulley

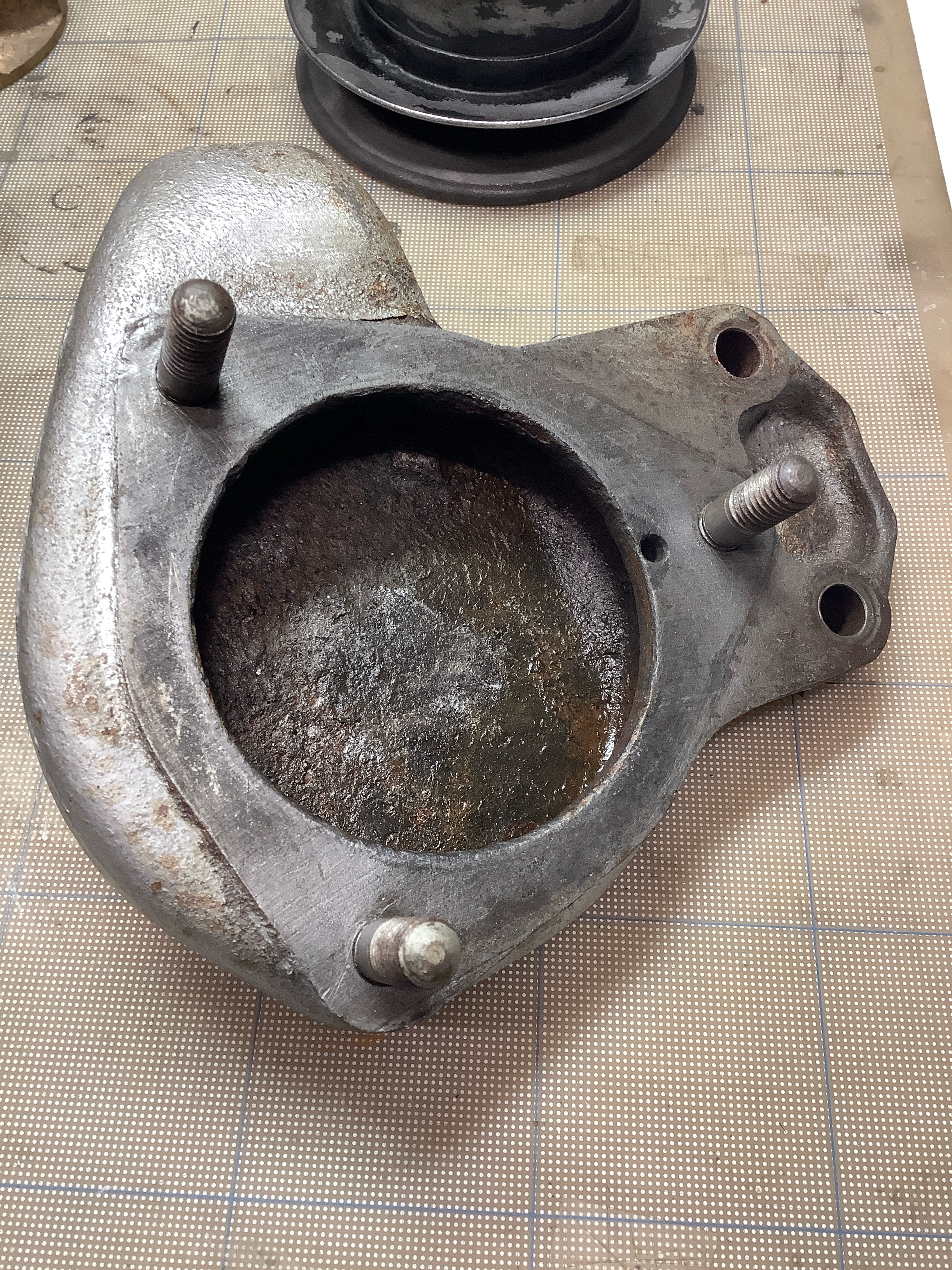

18. Impeller housing assembly

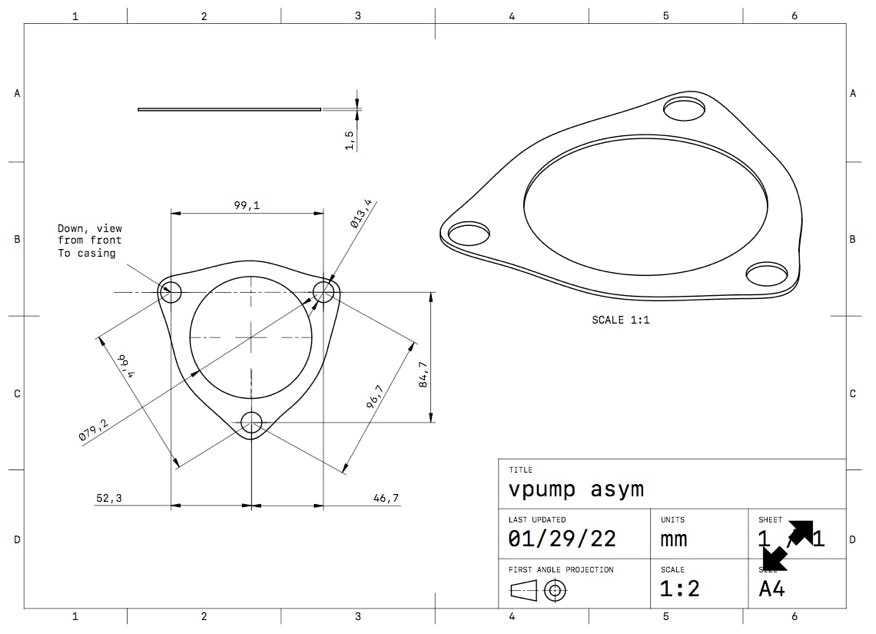

19. Gasket - impeller housing
20. Stud - impeller housing
21. Nut - impeller housing stud
22. Bolt - impeller housing to cylinder

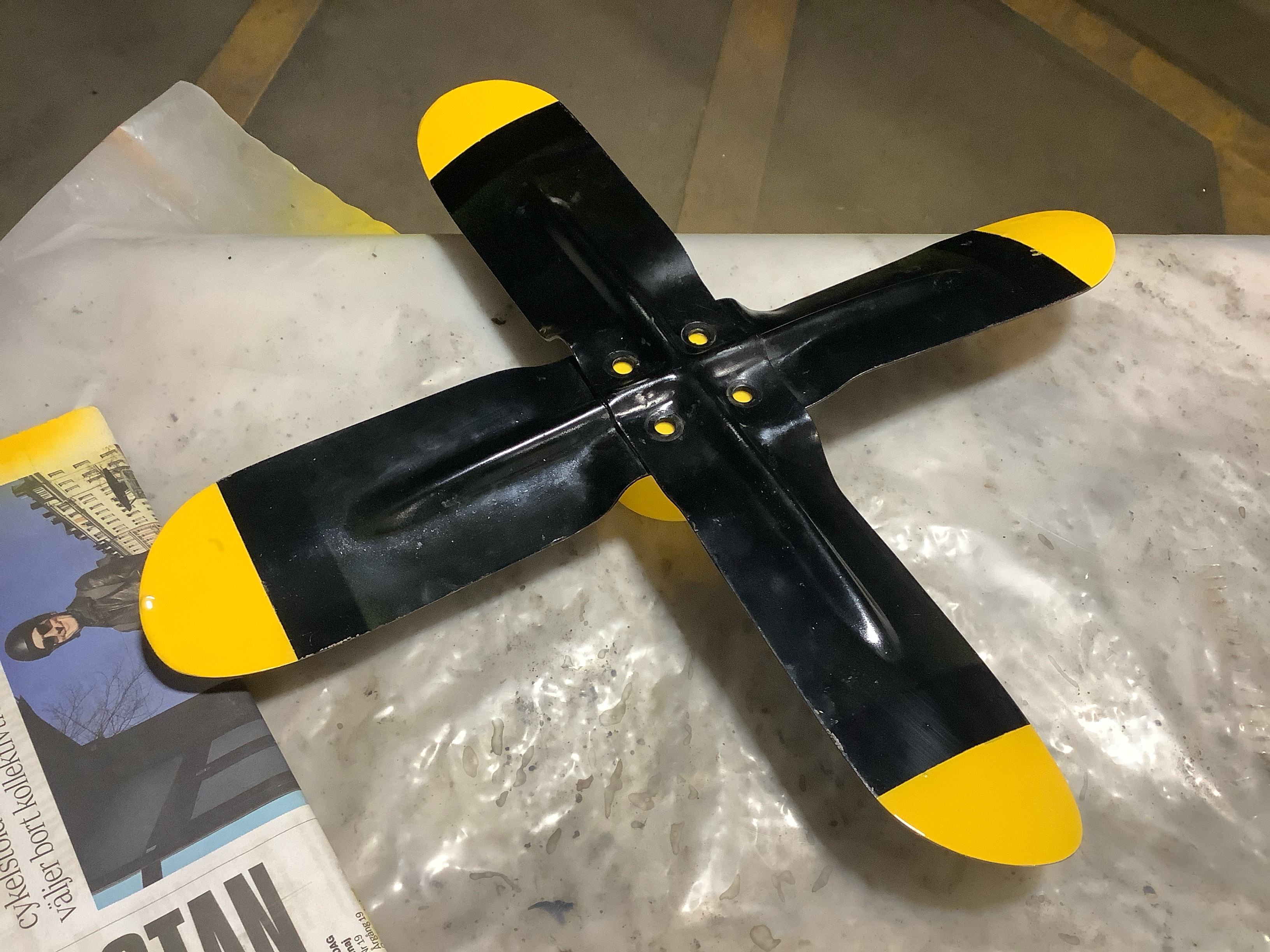

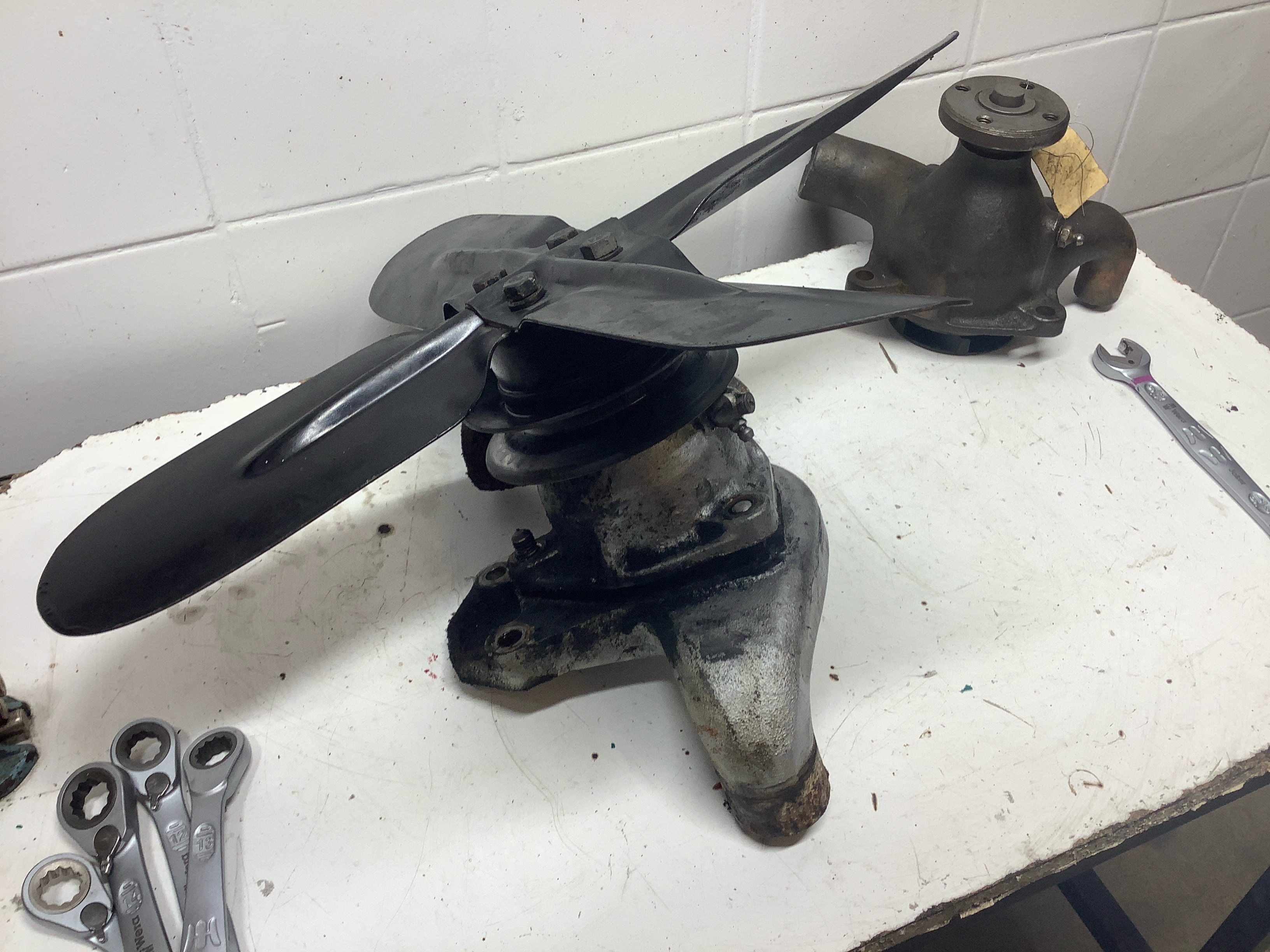

29. Fan blade.
30. Fan blade cushion.
31. Fan blade bolt.
32. Fan blade bolt lock.

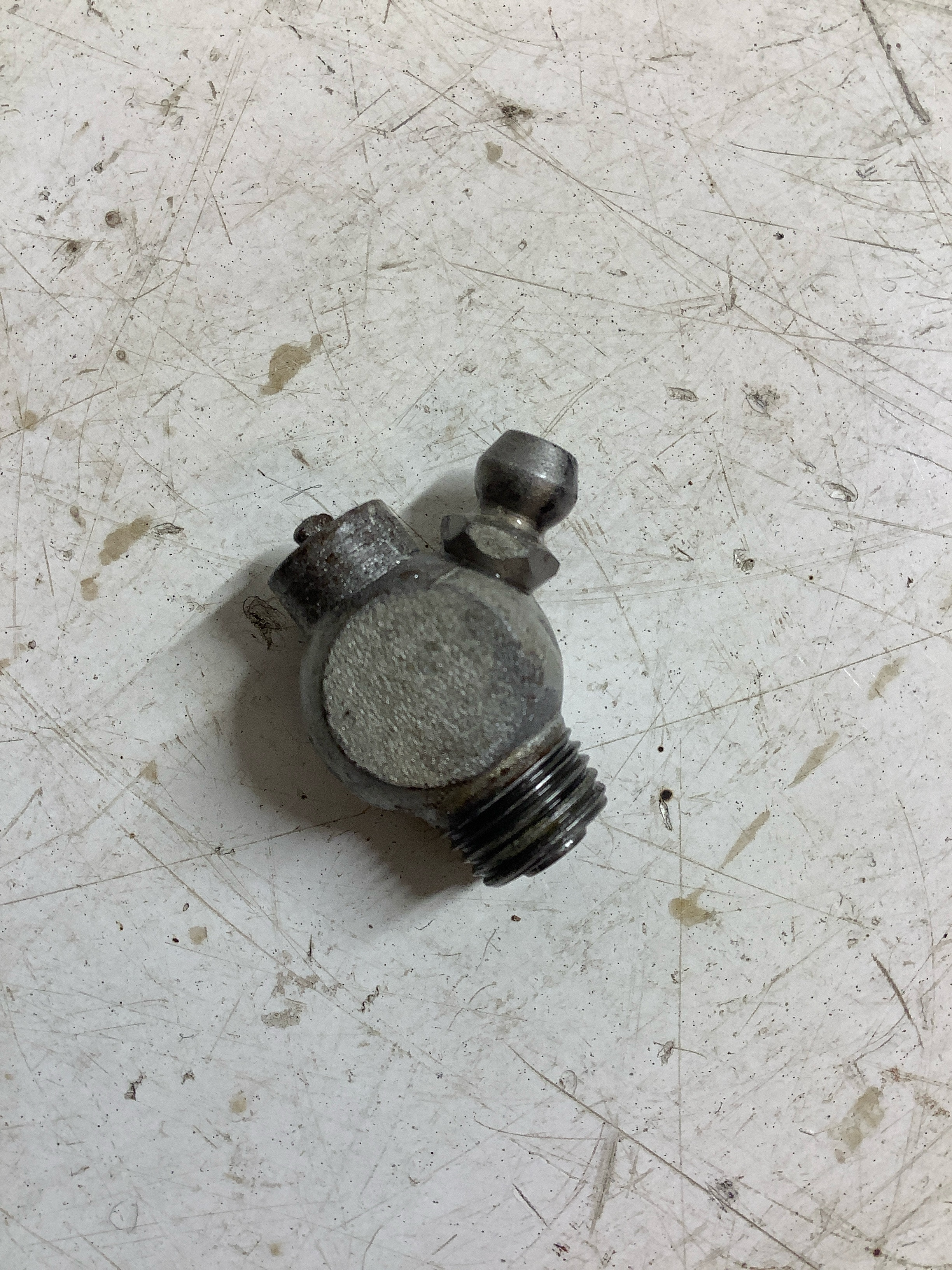

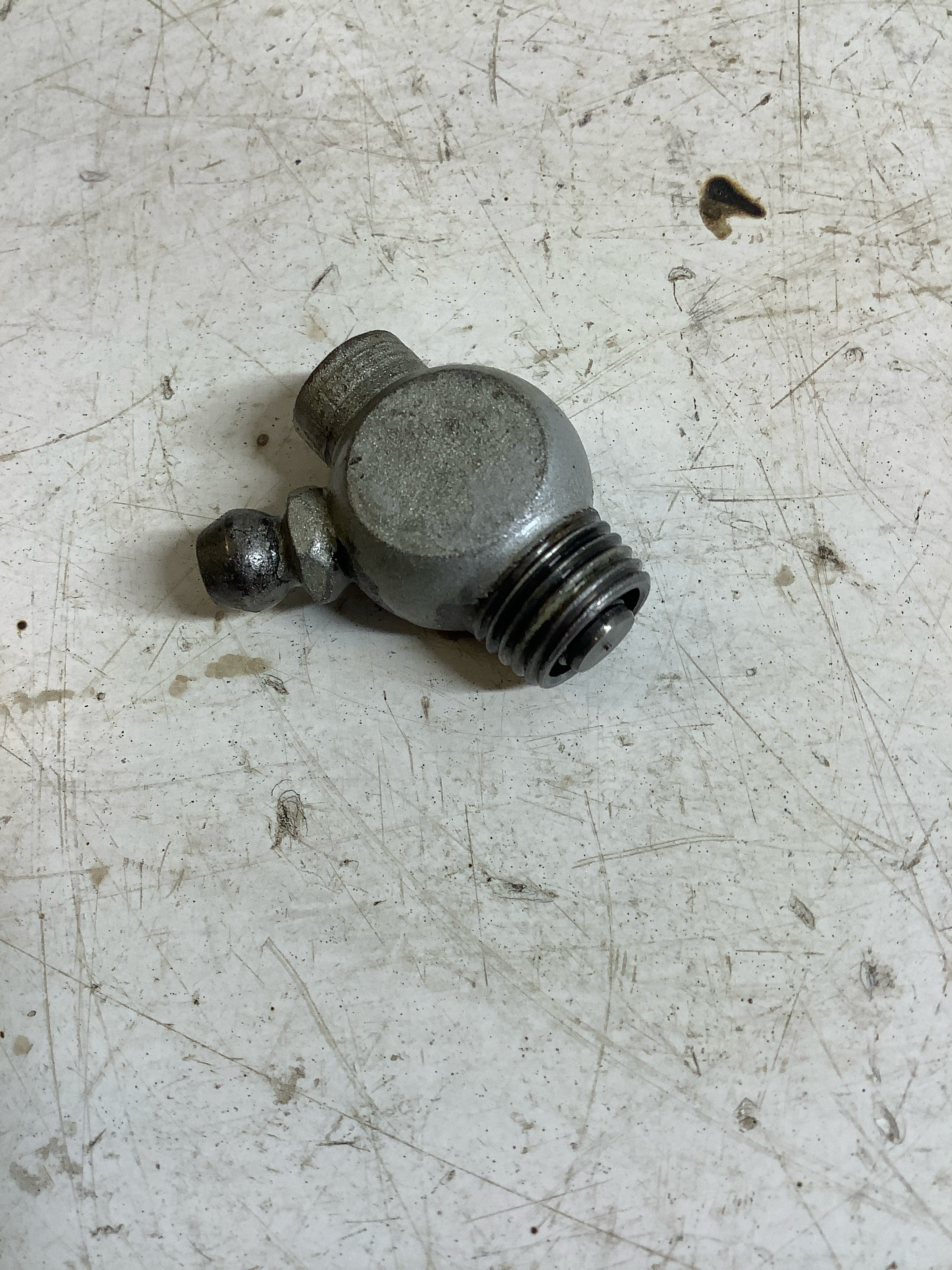

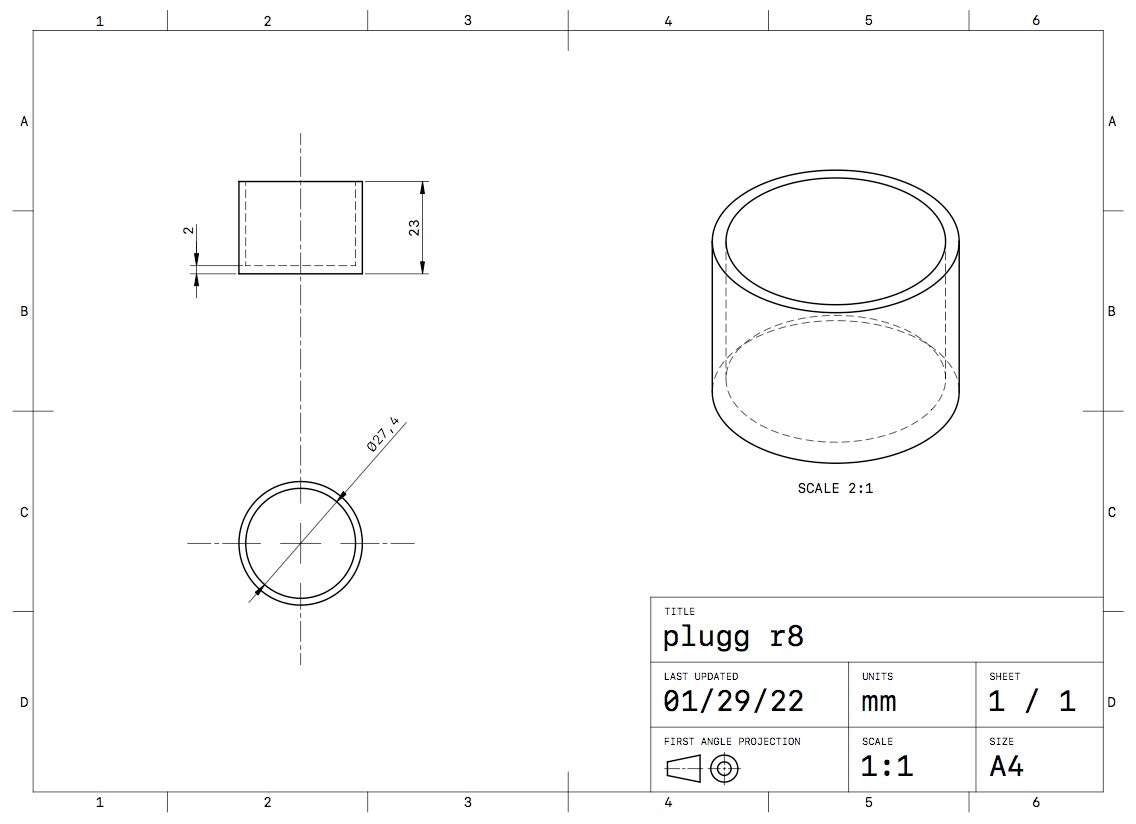

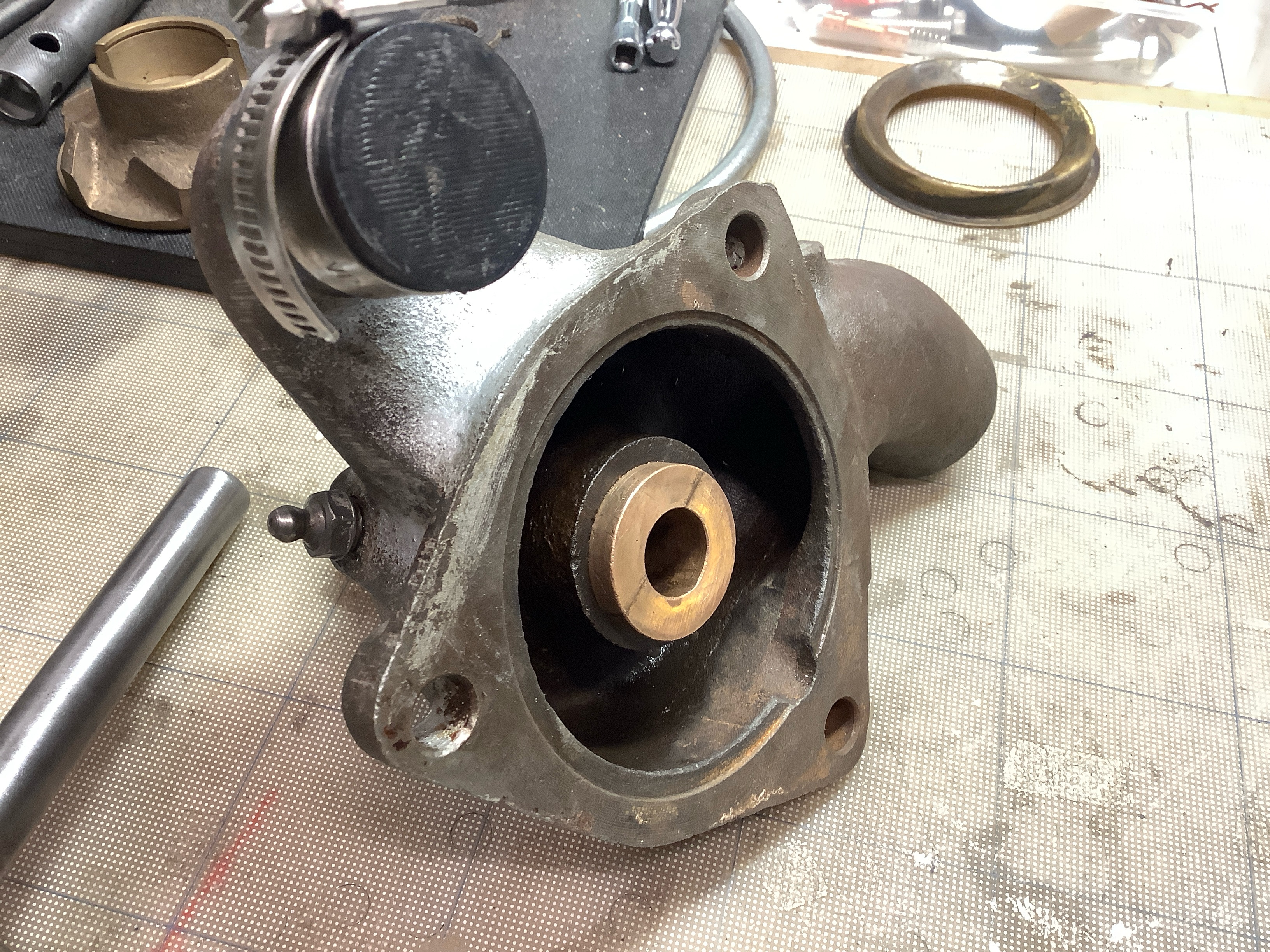

Blind plug for refurbished pump (8 cyl)

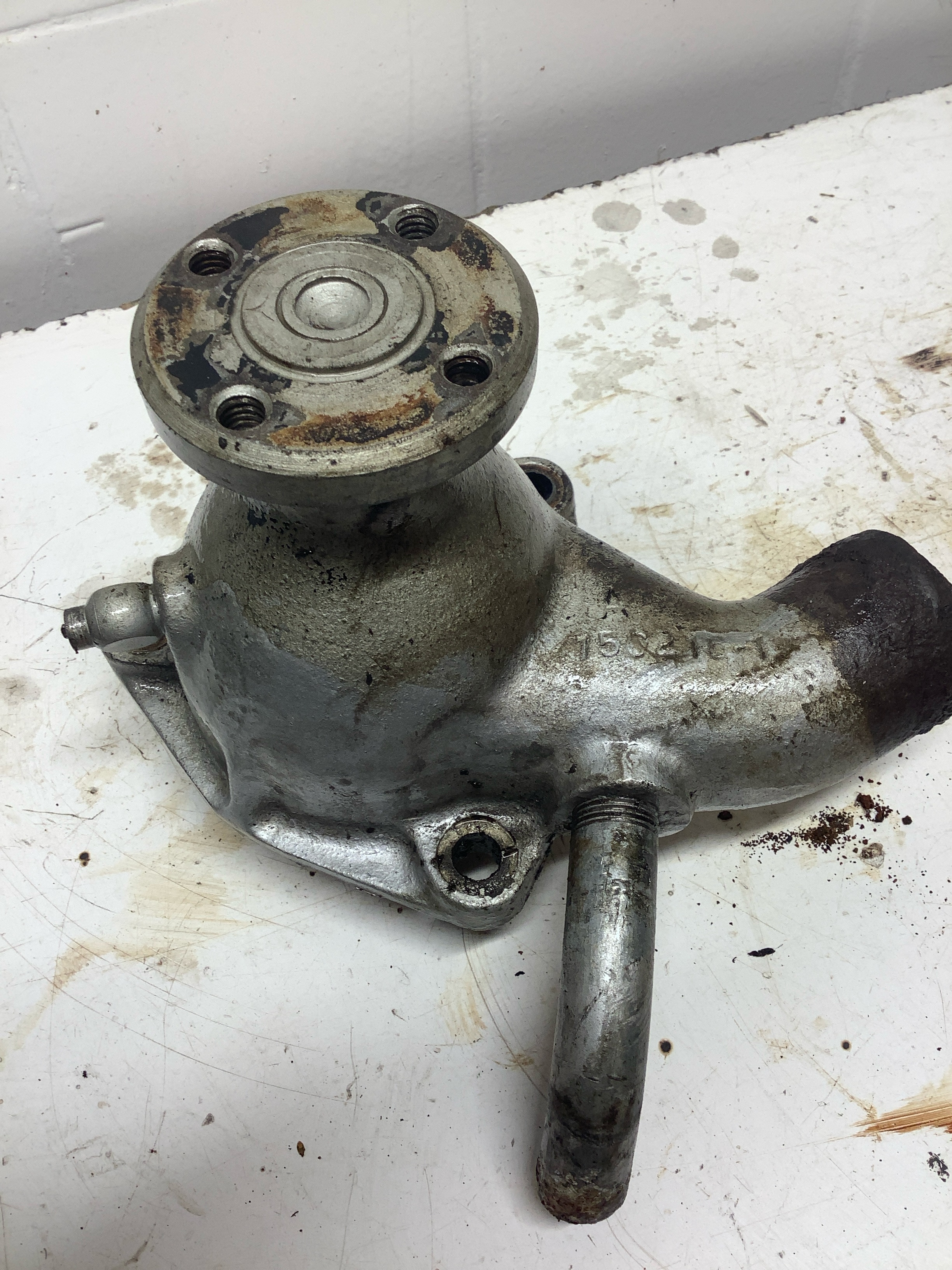

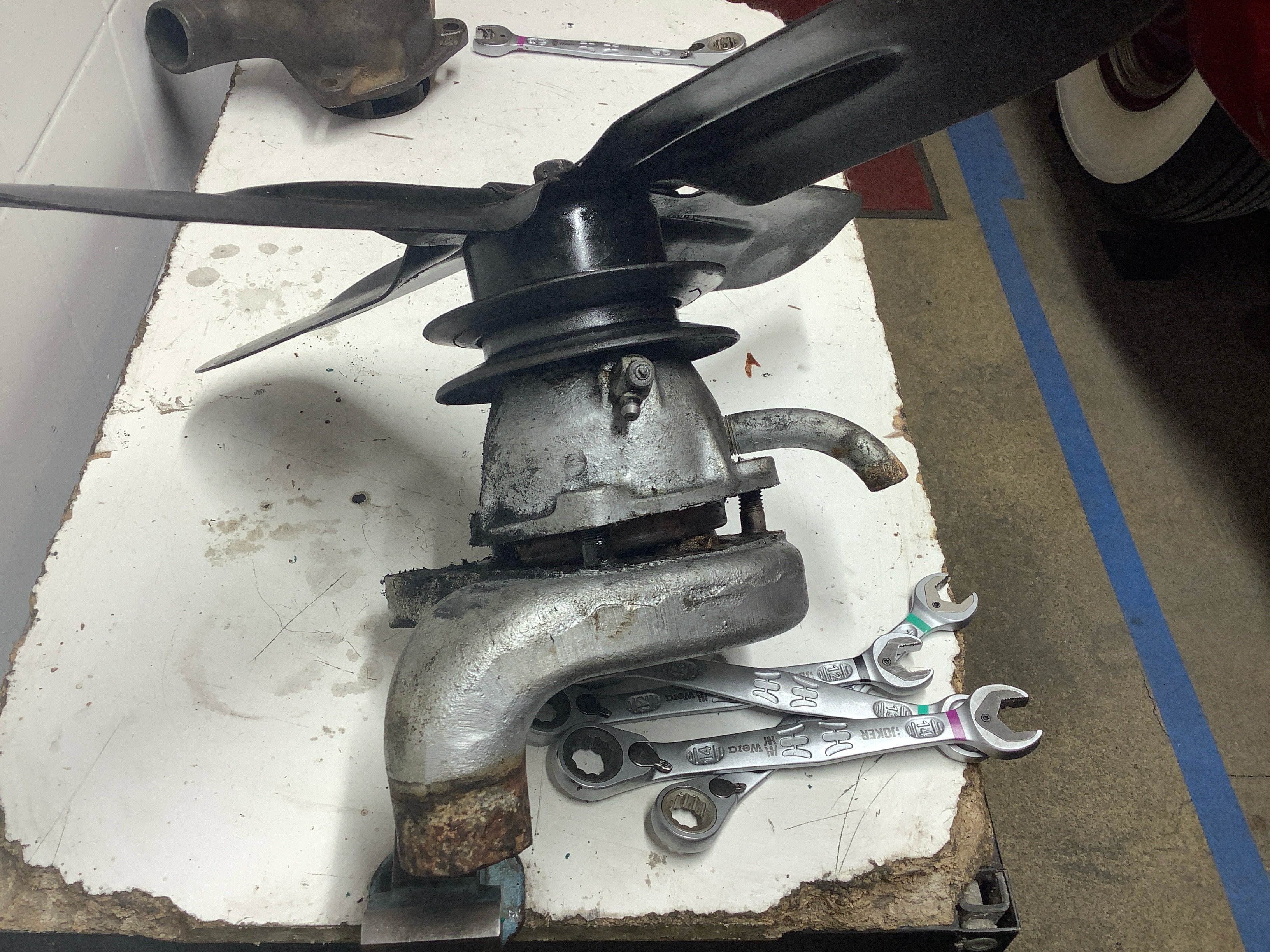

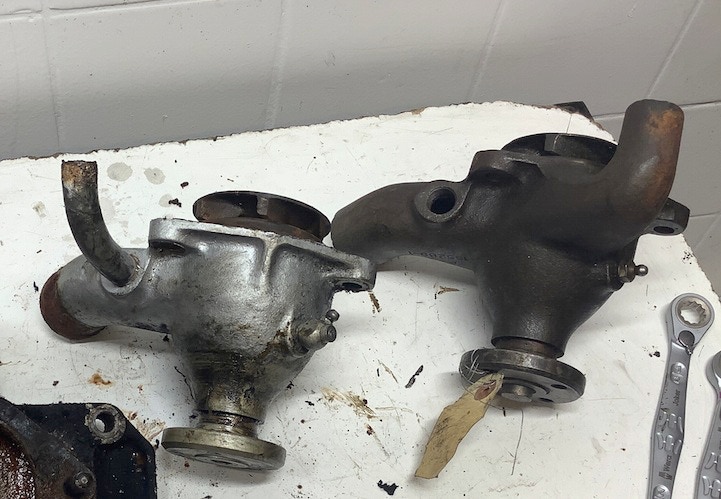

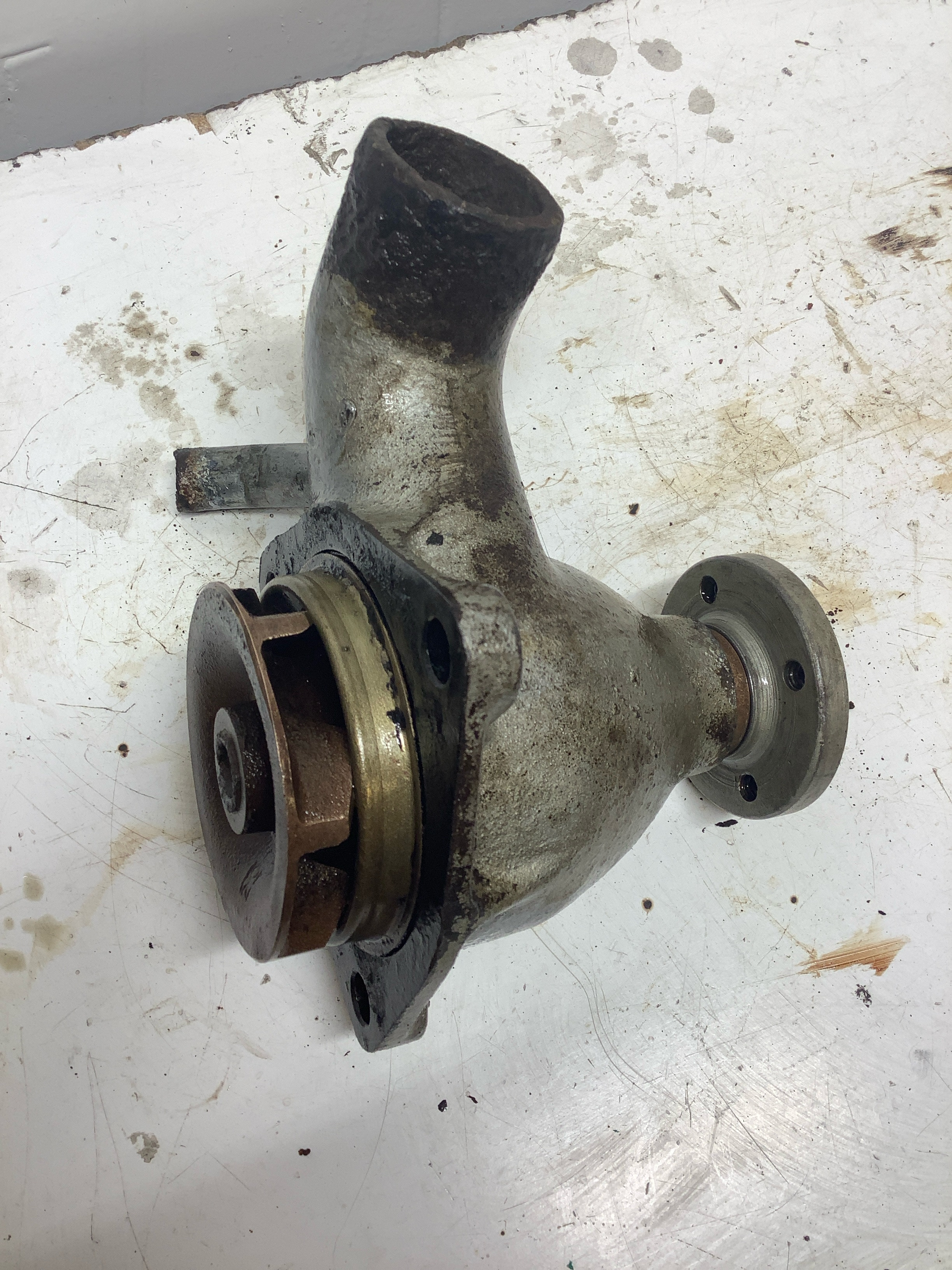

Original leaking wather

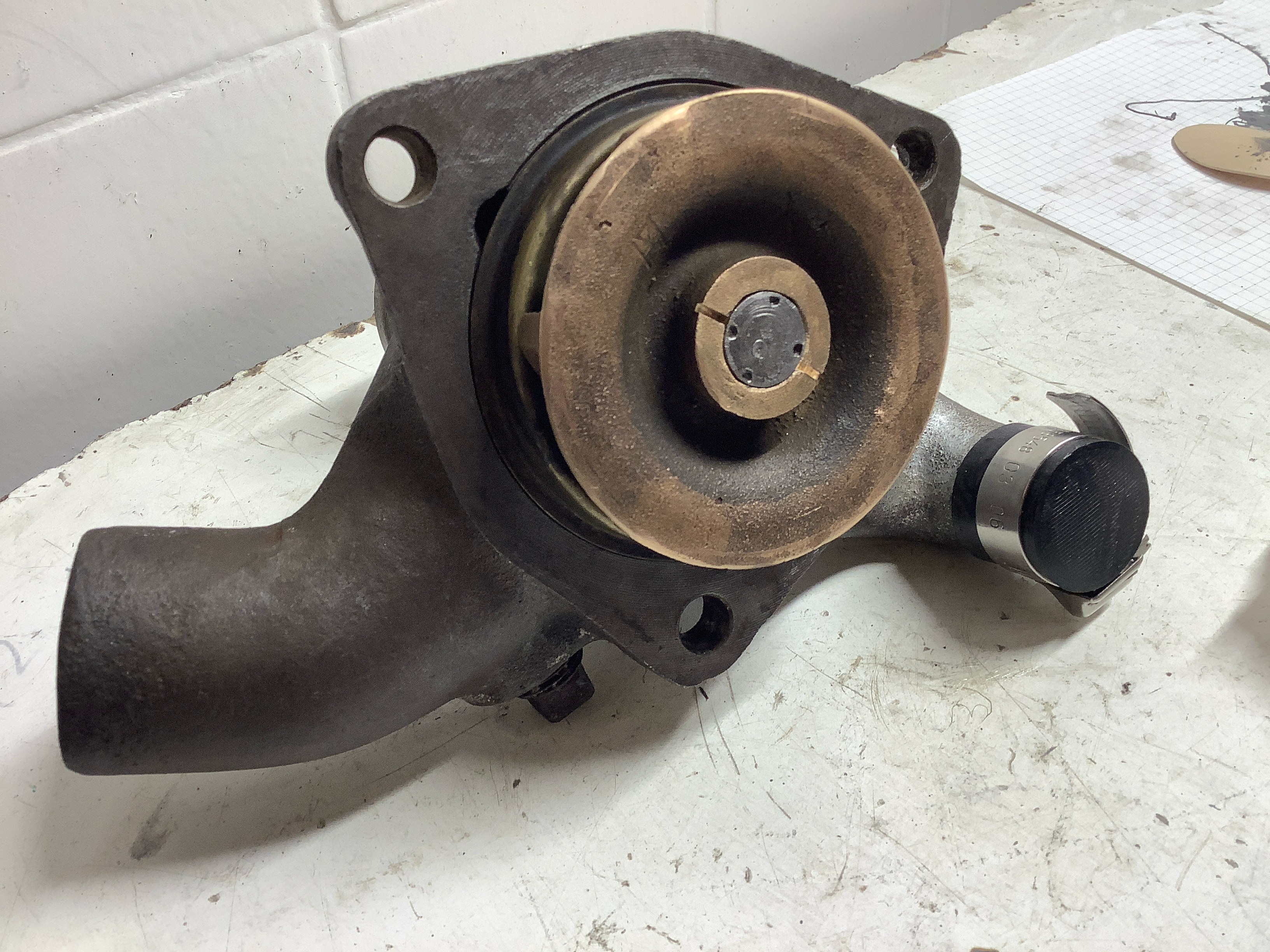

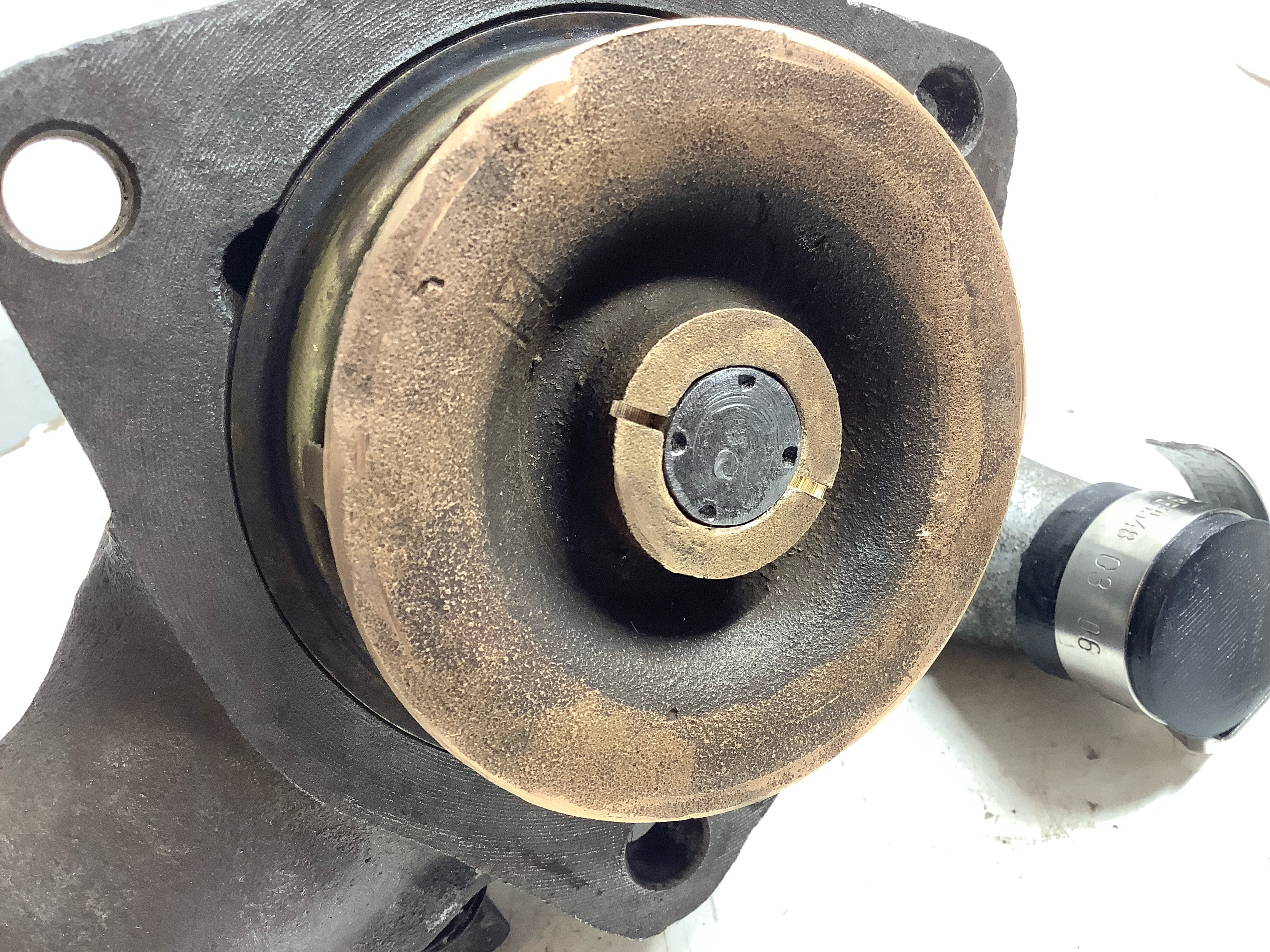

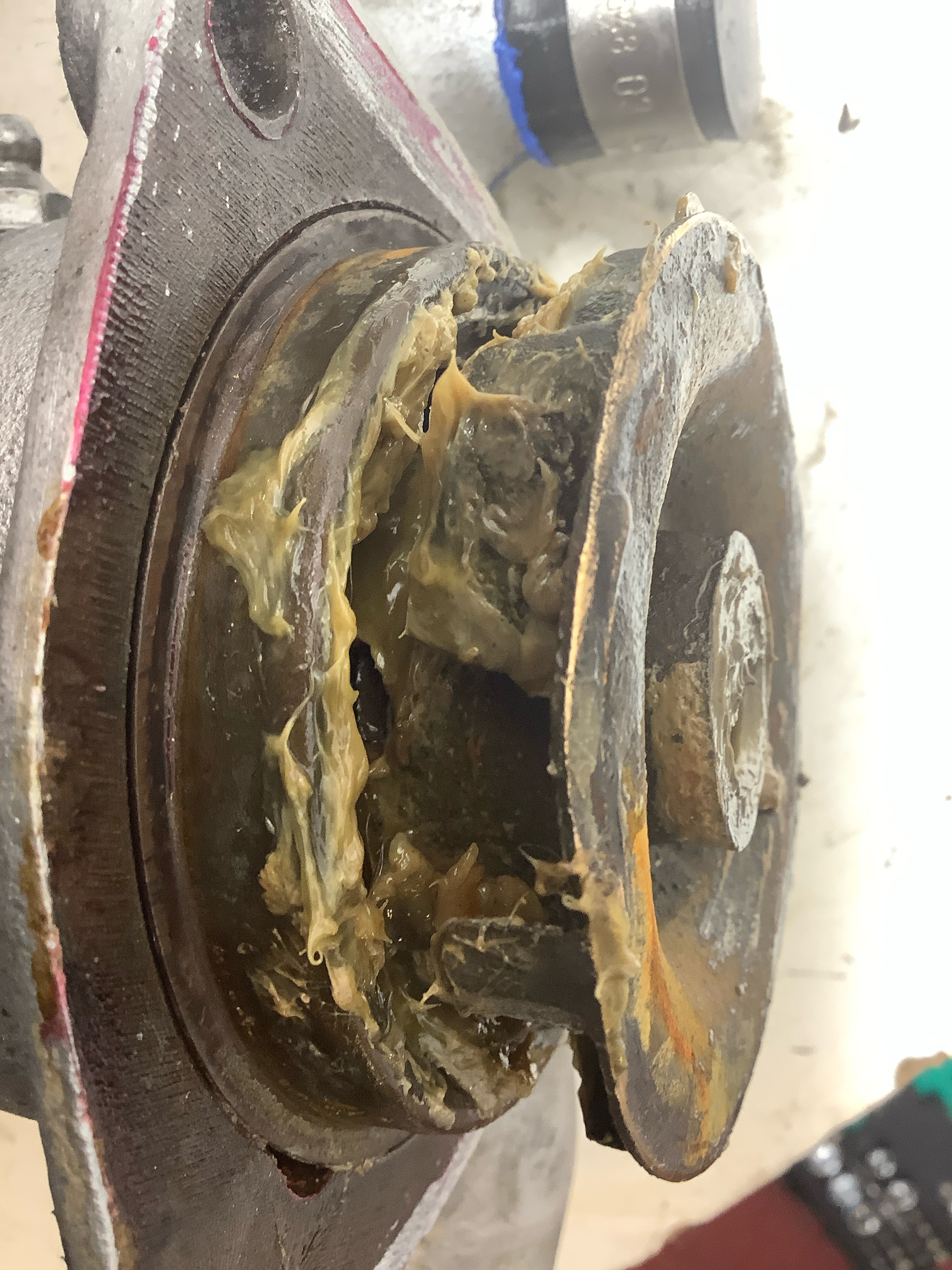

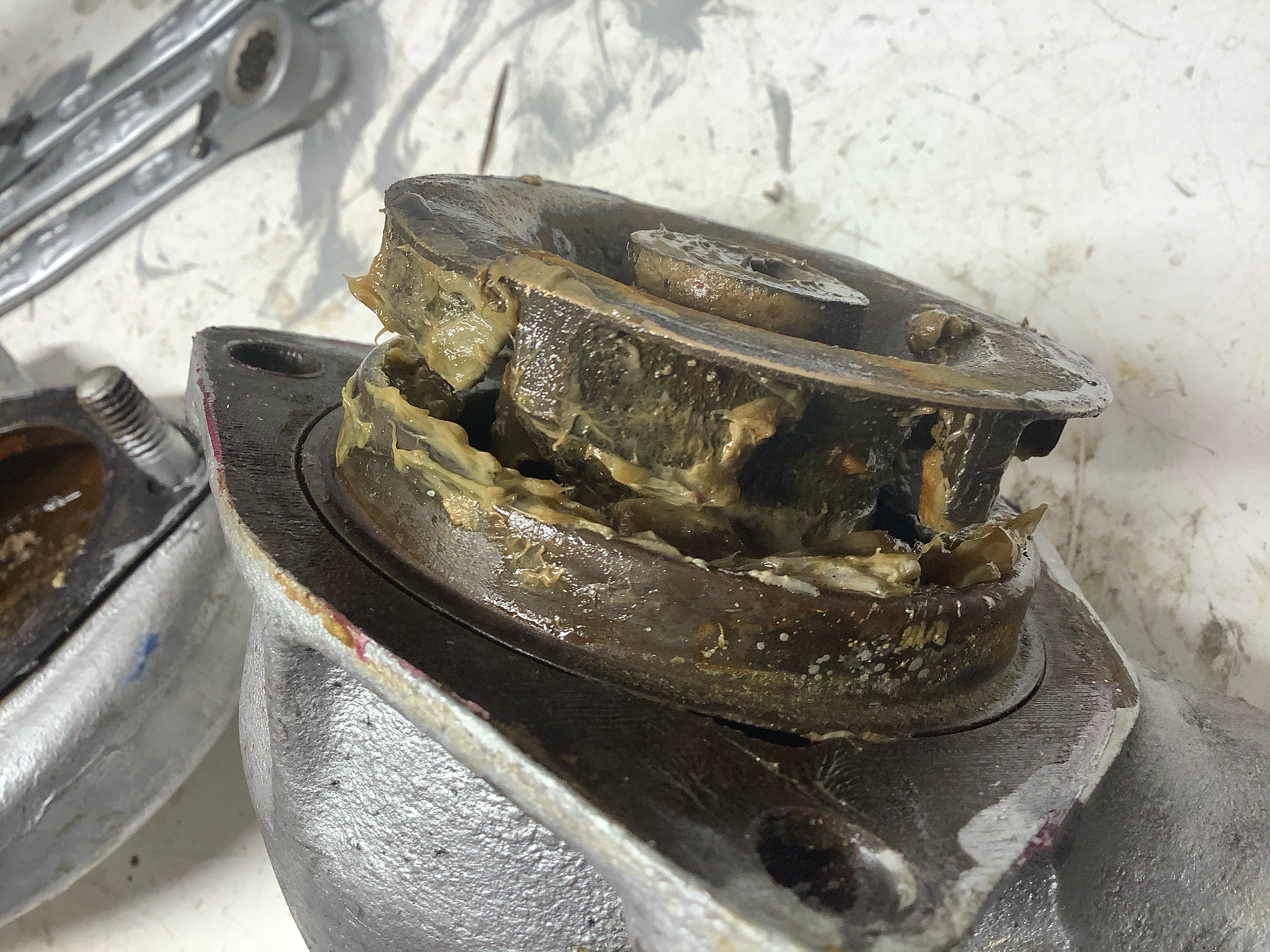

Refurbished total fail in10 minutes. Impeller became lose and leaked grease
